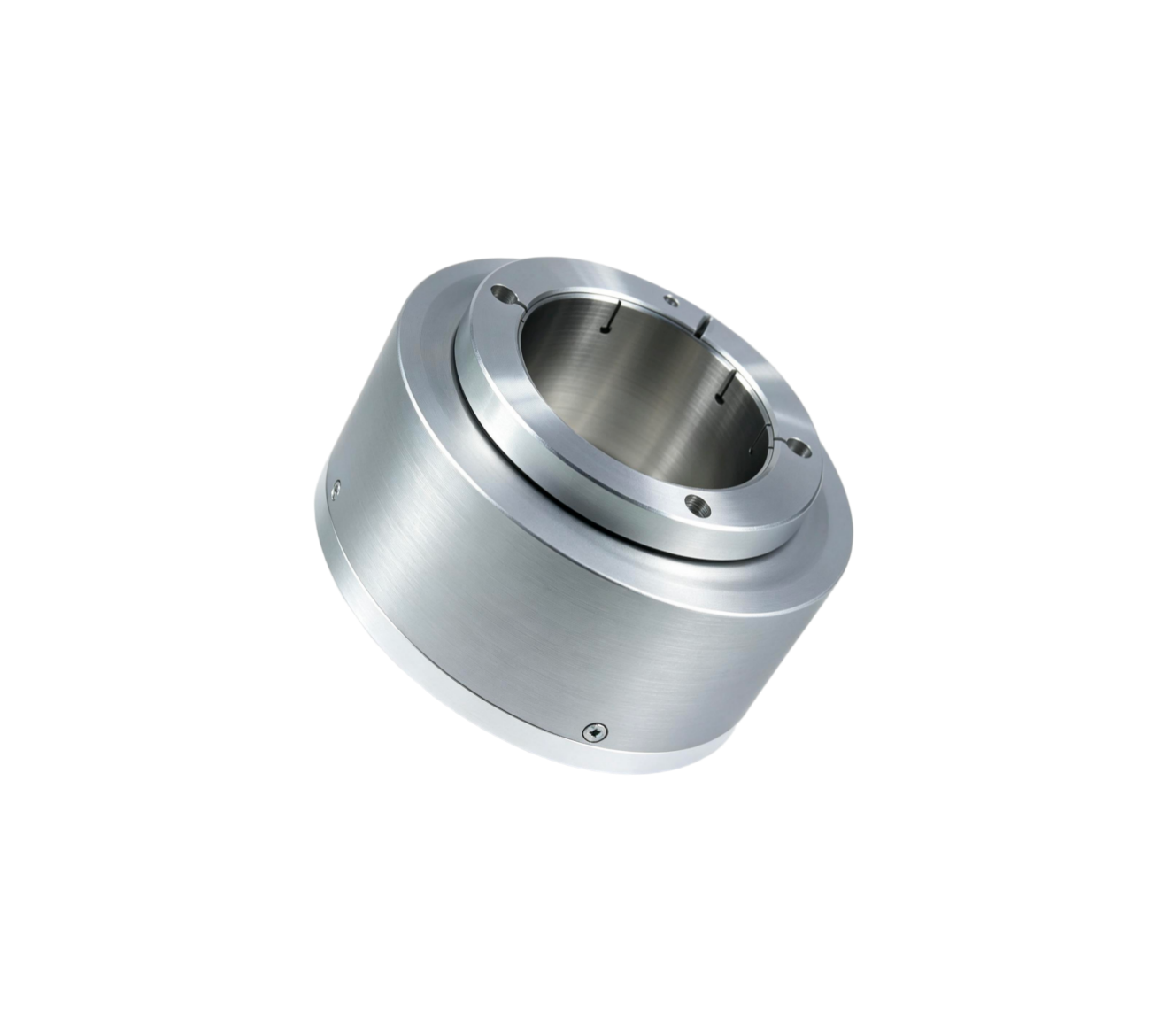

SDI118I60 Full Hollow Shaft Incremental Encoder
Full Hollow Shaft Incremental Encoder

SDI118I60

Home Incremental Encoder SDI118I60
SDI118I60
SDI118I60 Full Hollow Shaft Incremental Encoder
Full Hollow Shaft Incremental Encoder

SDI118I60

Full Hollow Shaft Incremental Encoder

SDI118I60 is a clamp hollow shaft rotary incremental encoder with a 118mm outer diameter and a 45-60mm hollow shaft diameter.

Full Hollow Shaft 45-60mm hollow shaft diameter for large shaft applications.
Flexible Resolution Resolution options from 120 to 7200, customizable.
4000 r/min Maximum operating speed of up to 4000 r/min.
Get A Quote View Specifications
PRODUCT OVERVIEW

SDI118I60 Full Hollow Shaft Encoder

SDI118I60 is a Clamp Hollow Shaft Rotary Incremental Encoder designed with a 118mm outer diameter and a 45-60mm shaft diameter.

The encoder provides customizable resolution options from 120 to 7200 and supports multiple supply voltage options including DC5V, DC8-26V, DC10-30V and DC12V.

It offers a maximum speed of 4000 r/min, maximum radial/axial load of 40N / 20N and an IP52 protection rating.

SPECIFICATION PARAMETERS

Technical Specifications

Detailed specification parameters of the SDI118I60 full hollow shaft incremental encoder.

Basic Information
Model
SDI118I60
Product Type
Clamp Hollow Shaft Rotary Incremental Encoder
Outer Diameter
118mm
Shaft Diameter
45-60mm
Mechanical Parameters
Maximum Speed
4000 r/min
Maximum Radial / Axial Load
40N / 20N
Electrical Parameters
Resolution
120, 200, 360, 500, 512, 600, 720, 1000, 1024, 1200, 2048, 2500, 4096, 5000, 7200 (Customizable)
Supply Voltage
DC5V; DC8-26V; DC10-30V; DC12V
Output Form
Voltage Output
Complementary Output
—
Open-collector Output
—
Long-line Drive Output
—
Wide-voltage Long-line Output
—
Output Parameters
Output Signal
Output of Phase A (one-way)
90° Phase-shifted A & B Signals
—
Z Signal
—
Environmental Parameters
Operating Temperature
-20～85℃
Protection Rating
IP52
APPLICATIONS

Suitable For Encoder Applications

Automatic Control

Suitable for automatic control systems and rotary feedback applications.

Automatic Measurement

Designed for automatic measurement and angle measurement applications.

Industrial Equipment

Suitable for industrial equipment requiring hollow shaft rotary incremental feedback.
