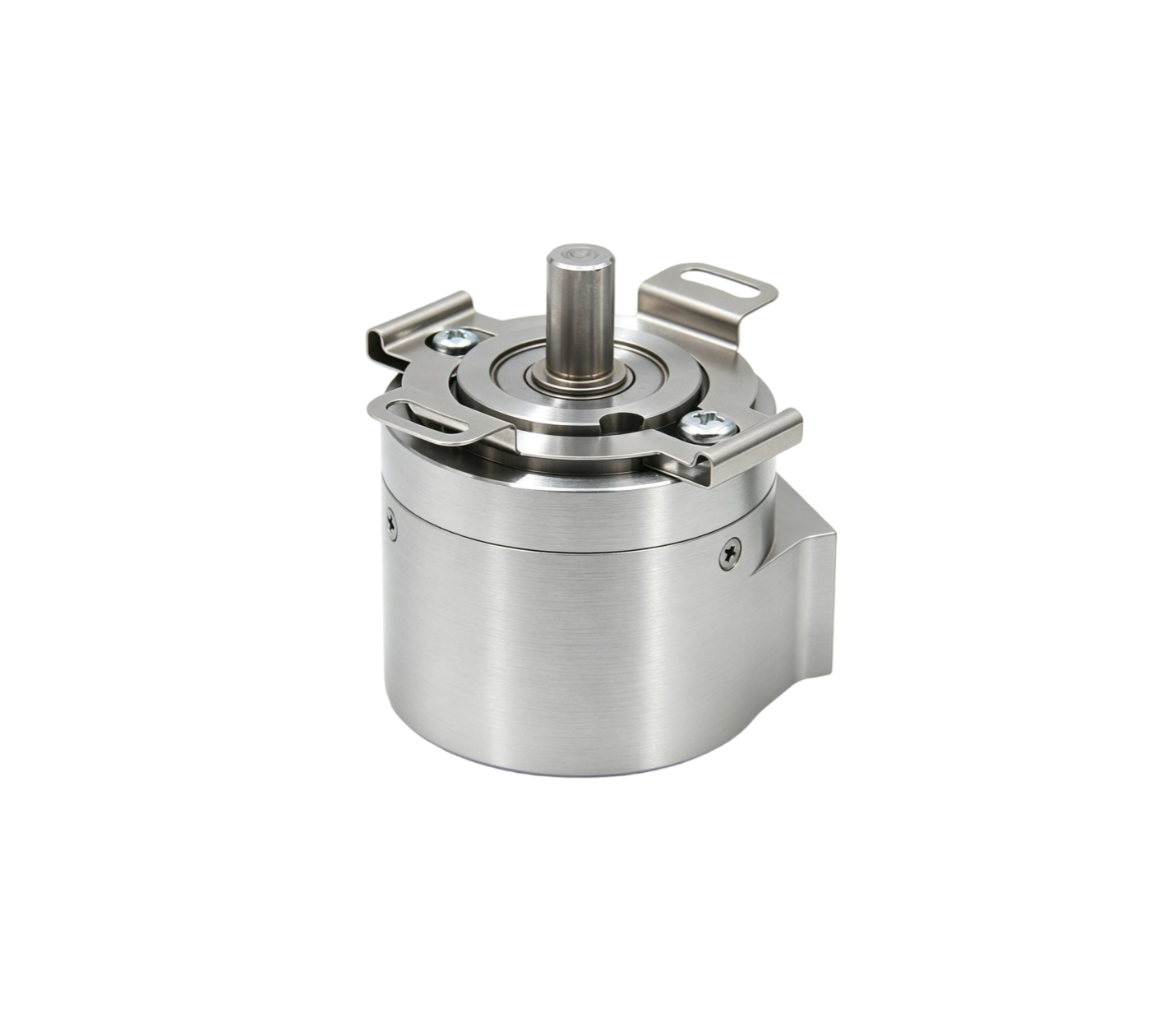

SAA58A10 Solid Shaft Encoder
Solid Shaft Encoder

SAA58A10

SAA58A10
SAA58A10 Solid Shaft Encoder
Solid Shaft Encoder

SAA58A10

Solid Shaft Encoder

It is an encoder for radar antenna, rotary head, automation control, high-precision positioning, and is a very cost-effective absolute encoder.

High-Precision Positioning Designed for radar antennas, rotary heads, automation control and precision positioning.
Mechanical Multi-turn Supports photoelectric mechanical multi-turn and magneto-electric mechanical multi-turn options.
Multiple Interfaces Supports RS485, RS422, RS232, SSI, BISS-C and CANOPEN interfaces.
Get A Quote View Specifications
Product Overview

Cost-effective Absolute Encoder

SAA58A10 photoelectric absolute encoder is a shaft-out type encoder designed for radar antennas, rotary heads, automation control and high-precision positioning applications.

RS485, RS422, RS232, SSI, BISS-C and CANOPEN interfaces can be selected. It can perform photoelectric mechanical multi-turn as well as magneto-electric mechanical multi-turn. After power down, manual rotation can be realized without losing data.

Technical Data

SAA58A10 Specifications

Product parameters and technical information for the SAA58A10 Solid Shaft Encoder.

Model

SAA58A10

Photoelectric Single-turn Encoder
Basic Information
Model
SAA58A10
Product Type
Photoelectric Single-turn Encoder
Mechanical Parameters
Outer Diameter
58 mm
Shaft Diameter
10 mm (Solid Shaft)
Maximum Speed
5000 r/min
Shaft Load
Radial ≤20N; Axial ≤10N
Electrical Parameters
Resolution
10–21 bit
Supply Voltage
DC5V±5% / DC10-30V
Output Code
Binary Code / Gray Code
Environmental Parameters
Operating Temperature
-40~65℃
Protection Rating
IP65
Communication
Communication Protocol
RS422 / RS485 / RS232
Communication Interface
Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS
Baud Rate
115200 / 57600 / 38400 / 19200 / 9600 / 4800
Update Rate (Hz)
2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20
Synchronous Communication Protocol
SSI / CANopen / BiSS-C
Applications

Where SAA58A10 Can Be Used

Suitable for radar, rotary positioning, automation control and high-precision positioning applications.

Radar Antennas

Suitable for rotary position sensing and positioning applications in radar antenna systems.

Rotary Heads

Designed for rotary heads requiring reliable absolute position measurement and feedback.

Automation Control

Suitable for automation control systems requiring reliable absolute position information.
