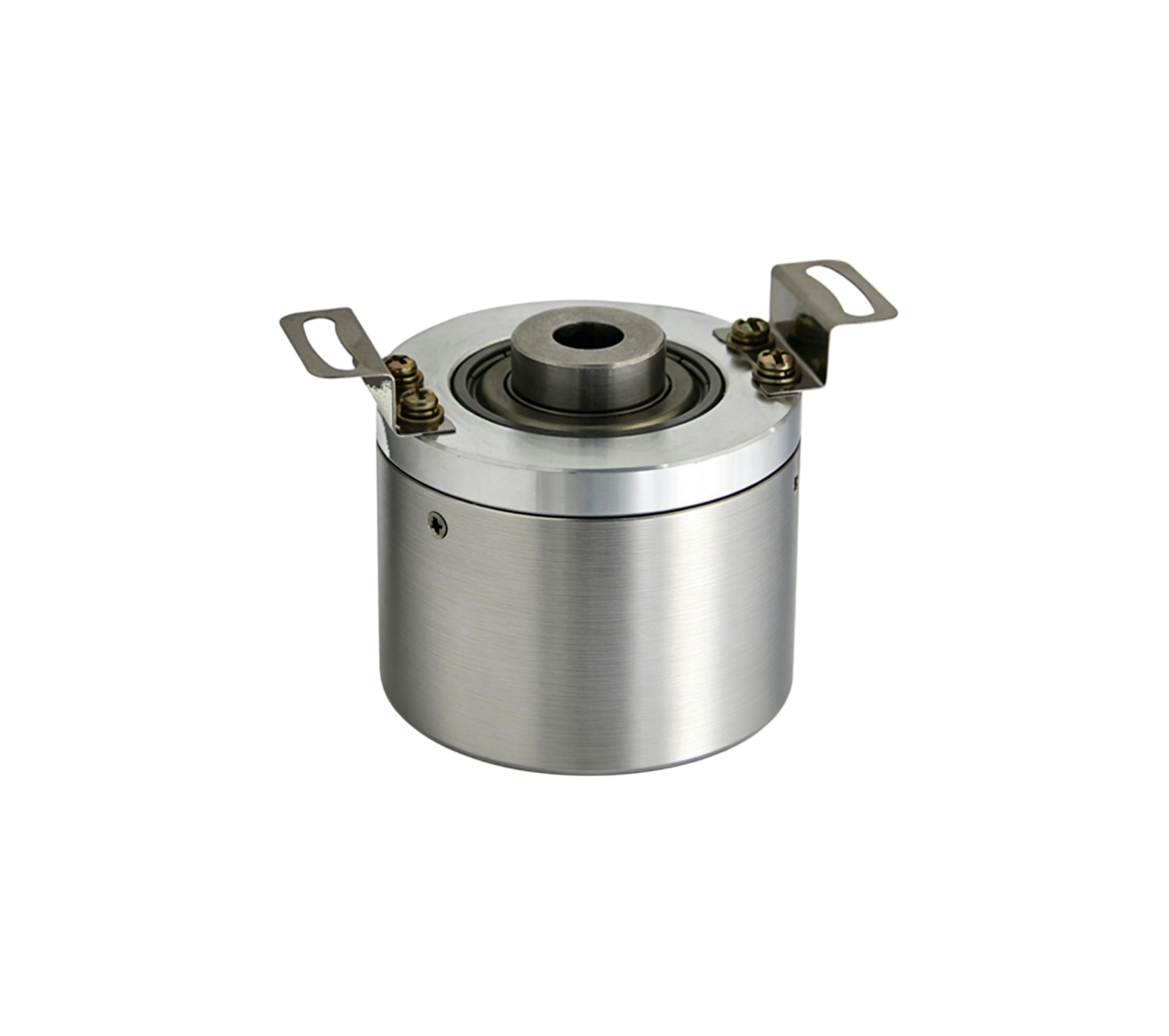

SAI38G Blind Hole Encoder
Blind Hole Encoder

SAI38G

Home Incremental Encoder SAI38G
SAI38G
SAI38G Blind Hole Encoder
Blind Hole Encoder

SAI38G

Blind Hole Encoder

SAI38G is widely used to control the speed and position of CNC machines such as embroidery machines.

Compact 38mm Design Small outer diameter of 38mm for compact installations.
6mm / 8mm Shaft Shaft hole options of 6mm and 8mm are available.
Rugged Construction High reliability, strong anti-jamming performance and long service life.
Get A Quote View Specifications
PRODUCT OVERVIEW

SAI38G Blind Hole Encoder

SAI38G is widely used to control the speed and position of CNC machines such as embroidery machines.

The encoder features a small outer diameter of 38mm, with 6mm and 8mm shaft hole options. The cable is available in two types: radial output and axial output.

SAI38G features rugged construction, high reliability, strong anti-jamming performance and long service life.

SPECIFICATION PARAMETERS

Technical Specifications

Detailed specification parameters of the SAI38G blind hole encoder.

Basic Information
Model
SAI38G
Product Type
Semi-hollow Shaft Incremental Encoder
Outer Diameter
38mm
Shaft Diameter
6mm; 8mm
Mechanical Parameters
Maximum Speed
6000 r/min
Maximum Radial / Axial Load
30N / 20N
Electrical Parameters
Resolution
30, 60, 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000; (Customizable)
Supply Voltage
DC5V; DC8-26V; DC10-30V; DC12V
Output Form
Voltage Output
Complementary Output
—
Open-collector Output
—
Long-line Drive Output
—
Wide-voltage Long-line Output
—
Output Parameters
Output Signal
Output of Phase A (one-way)
90° Phase-shifted A & B Signals
—
Z Signal
—
Environmental Parameters
Operating Temperature
-20～85℃
Protection Rating
IP54
APPLICATIONS

Designed For CNC Applications

CNC Machines

Used for controlling the speed and position of CNC machines.

Embroidery Machines

Suitable for speed and position control in embroidery machine applications.

Speed & Position Control

Designed for applications requiring reliable speed and position control feedback.
