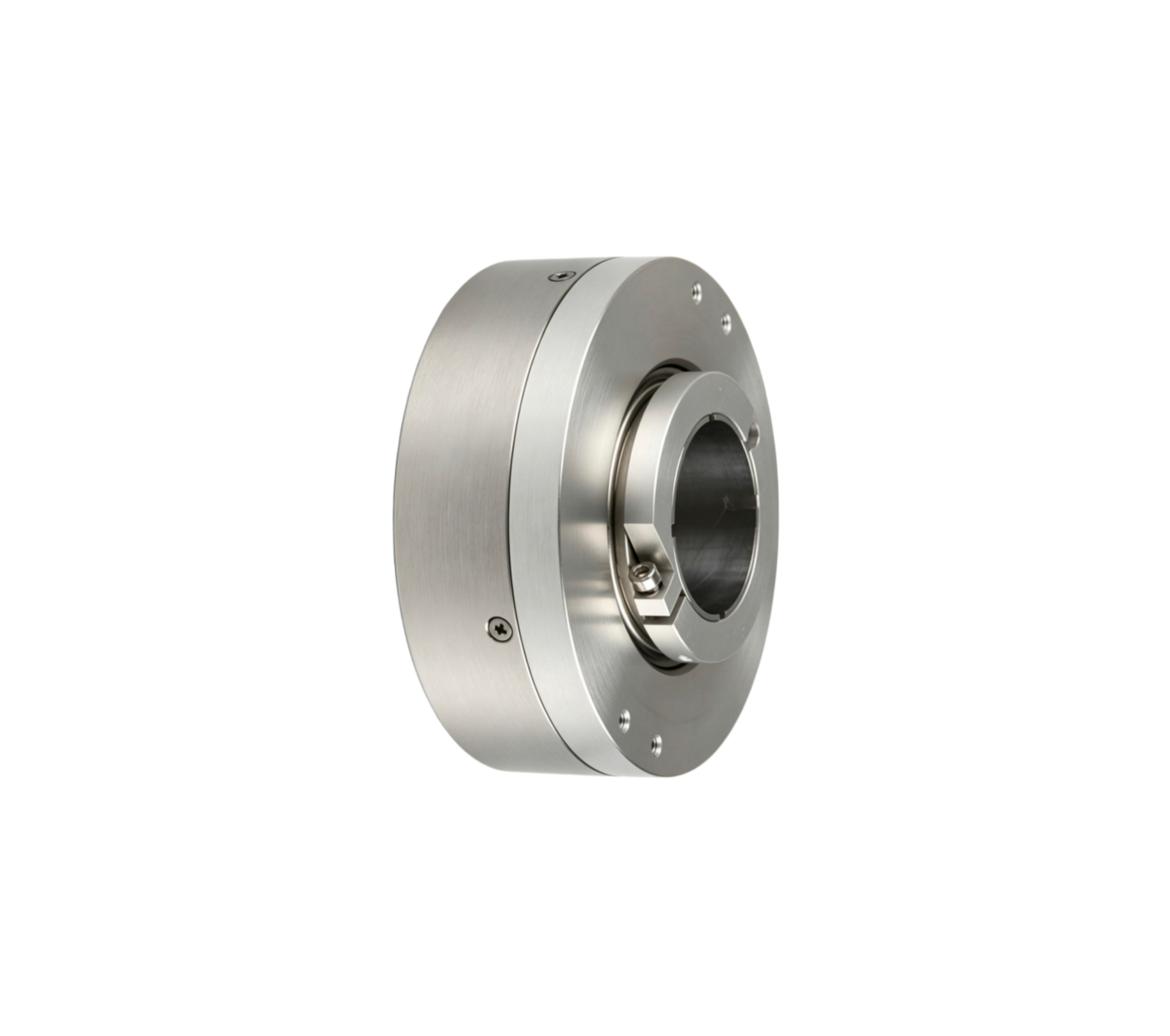

SAA80I25 Absolute Encoder
Absolute Encoder

SAA80I25

SAA80I25
SAA80I25 Absolute Encoder
Absolute Encoder

SAA80I25

Hollow Shaft Encoder

SAA80I25 is a hollow shaft absolute encoder designed for reliable rotary position measurement in industrial automation, machinery and motion-control applications.

Large Hollow Shaft Position Feedback Reliable rotary position measurement and feedback.
Industrial-Grade Construction Suitable for automation and motion-control systems.
Large Hollow Shaft Design Built for dependable position sensing applications.

Reliable Position Feedback

The SAA80I25 belongs to the Absolute Encoder range and is designed for rotary position sensing applications where reliable absolute feedback is required.

Its large 80 mm housing and 25 mm hollow shaft make it suitable for industrial machinery, automation equipment and motion-control systems requiring robust shaft integration.

SAA80I25 Specifications

Product parameters and technical information for the SAA80I25 Absolute Encoder.

Model

SAA80I25

Photoelectric Single-turn Encoder
Basic Information
Model
SAA80I25
Product Type
Absolute Encoder
Mechanical Parameters
Outer Diameter
80 mm
Shaft Diameter
25 mm (Hollow Shaft)
Maximum Speed
3000 r/min
Shaft Load
Radial ≤20N; Axial ≤10N
Electrical Parameters
Resolution
12–20 bit Single-turn; 2–16 bit Multi-turn
Supply Voltage
DC5V / DC10-30V
Output Code
Binary Code / Gray Code
Environmental Parameters
Operating Temperature
-40~65°C
Protection Rating
IP64
Communication
Communication Protocol
RS422 / RS485 / RS232; SSI / CANopen / BiSS-C
Communication Interface
Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS; Baud Rate: 115200 / 57600 / 38400 / 19200 / 9600 / 4800; Update Rate: 2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20 Hz

Where SAA80I25 Can Be Used

Suitable for applications that require dependable rotary position sensing and feedback.

Industrial Automation

Position feedback for automated machinery and industrial equipment.

Motion Control

Suitable for rotary motion and position monitoring applications.

Machinery Systems

Can be integrated into machinery requiring reliable position feedback.
